NODE 2024 (N132) Streamer

£549

The Bluesound NODE is a compact music streamer with a refined DAC stage, improved headphone output and full support for high-resolution streaming services. With HDMI eARC, BluOS multi-room and a clean, easy-to-use interface, it’s a simple way to bring modern streaming into almost any hi-fi system.

SKU: N/A

Bluesound NODE 2024 (N132) Streamer

Simply put, there is nothing like the NODE. With re-engineered components and circuitry for even better performance, the original wireless hi-res music streamer now features built-in THX AAA™ headphone technology, DSD playback, and more. Connect it to your stereo system and stream music, radio, podcasts, and more from popular streaming services or your personal library. With HDMI eARC, Dolby Digital decoding, and Apple AirPlay 2, the NODE is at the core of your home audio experience, with the flexibility to wirelessly connect to Bluesound Players for seamless multi-room music throughout the home.

Key Features

ESS ES9039Q2M SABRE® DAC

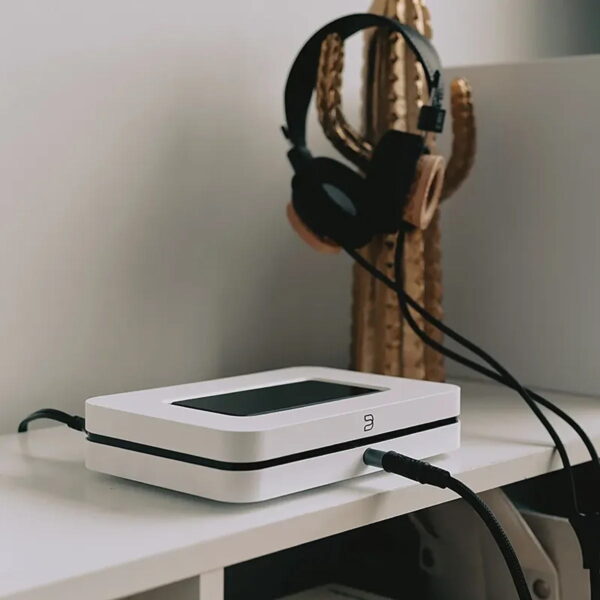

THX AAA™ headphone amplifier technology with full-sized 1/4″ headphone output
RCA, optical, coaxial, and USB audio outputs
HDMI eARC, optical, and analog audio inputs
Room correction with Dirac Live Ready
DSD playback
Five programmable quick-touch presets and proximity-sensing controls
Works with AirPlay 2, Spotify Connect, and TIDAL Connect
Roon Ready
Two-way aptX™ Adaptive* Bluetooth
Dirac Live Room Correction ready

SMART ACOUSTICS

With Dirac Live Room Correction as an available upgrade, you can use sophisticated room correction technology and measure room acoustics to eliminate standing waves, reverberations, and other unwanted distortions. A calibration kit with a high-sensitivity mic is also required and available from Bluesound with additional purchase.

CONNECT EVERYTHING

The NODE is fully equipped with digital/analog inputs and outputs, making it incredibly versatile in any stereo or home audio setup with Stereo RCA, Optical, USB, and more. Connect it to your TV via HDMI eARC and use its built-in IR learning for seamless universal control of any remote. Program up to five presets on a proximity-sensing touch panel for quick and easy access of your favorite sources.

Specifications

Audio

Supported Audio File Formats	MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Native Sampling Rates	up to 192 kHz
Signal-to-Noise Ratio	-118 dB
Supported High-Quality Audio File Formats	FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Bit Depth	16-24
Distortion	THD+N, 0.0007%
DSD Support	DSD256
Audio Controls & EQ	BluOS Controller App
Headphone Continuous Output Power (THD<0.1%)	160mW, 16Ω230mW, 32Ω53mW, 250Ω22mW, 600Ω
Supported Multi-Channel Audio Formats	Dolby Digital®
DAC	ESS ES9039Q2M
Dirac Live Output Support	Analog: RCA StereoDigital: Optical, Coaxial

Software & Integrations

Operating System	BluOS
Supported Network File Sharing	Server Message Block (SMB) up to 200,000 files
3rd-Party Integrations	AirPlay 2, Spotify Connect (also support for Spotify Lossless), Tidal Connect, Qobuz Connect, Roon Ready, Dirac Live Ready
App Controller Operating System	iOS, Android, Windows, macOS
Album Art Supported	JPG, PNG
Control System Integrations	Crestron, Control4, RTI, ELAN, URC, Lutron, Josh.ai
Processor	ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Music Services & Internet Radio	23+Music ServicesInternet Radio
Voice Control Integrations	Amazon Alexa Skills

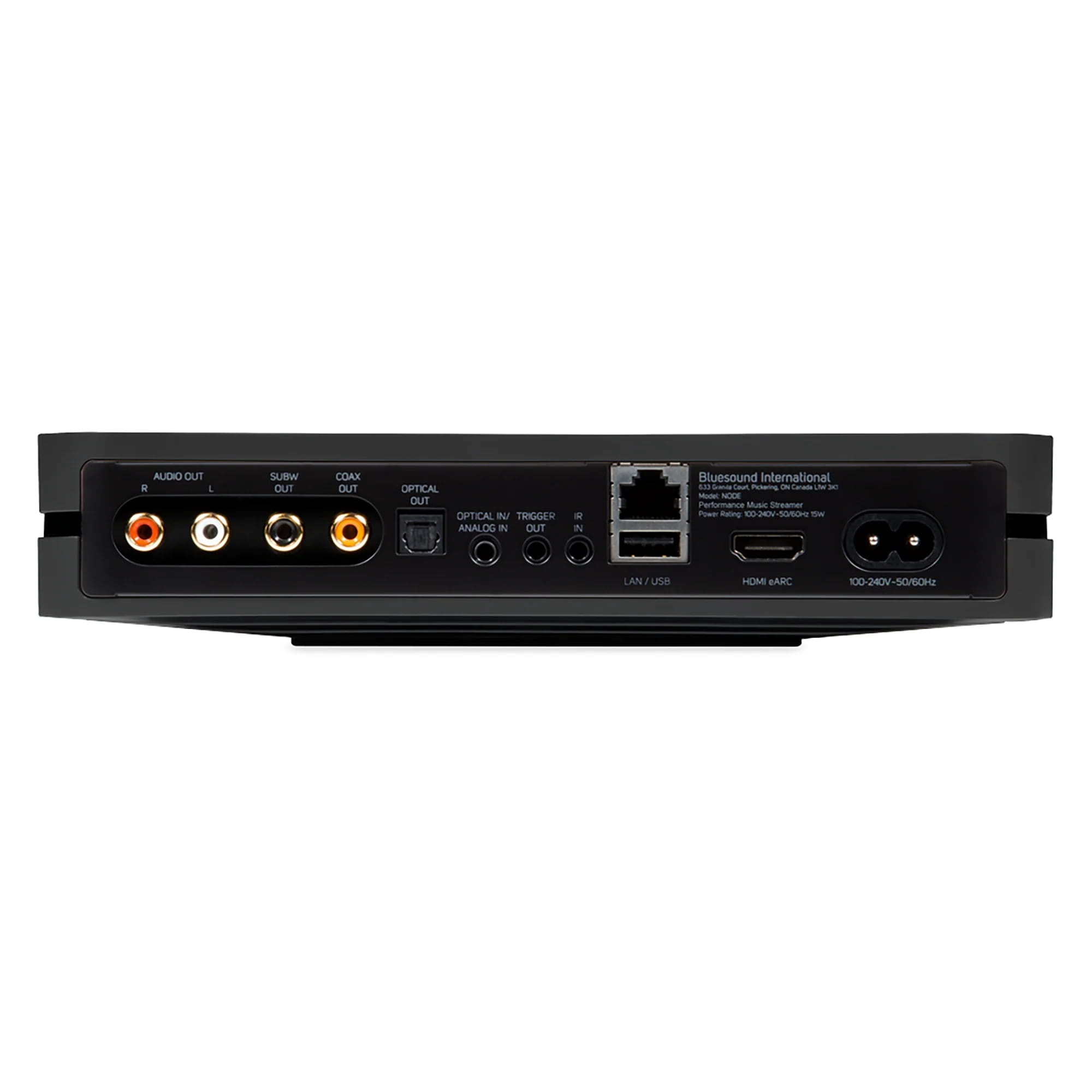

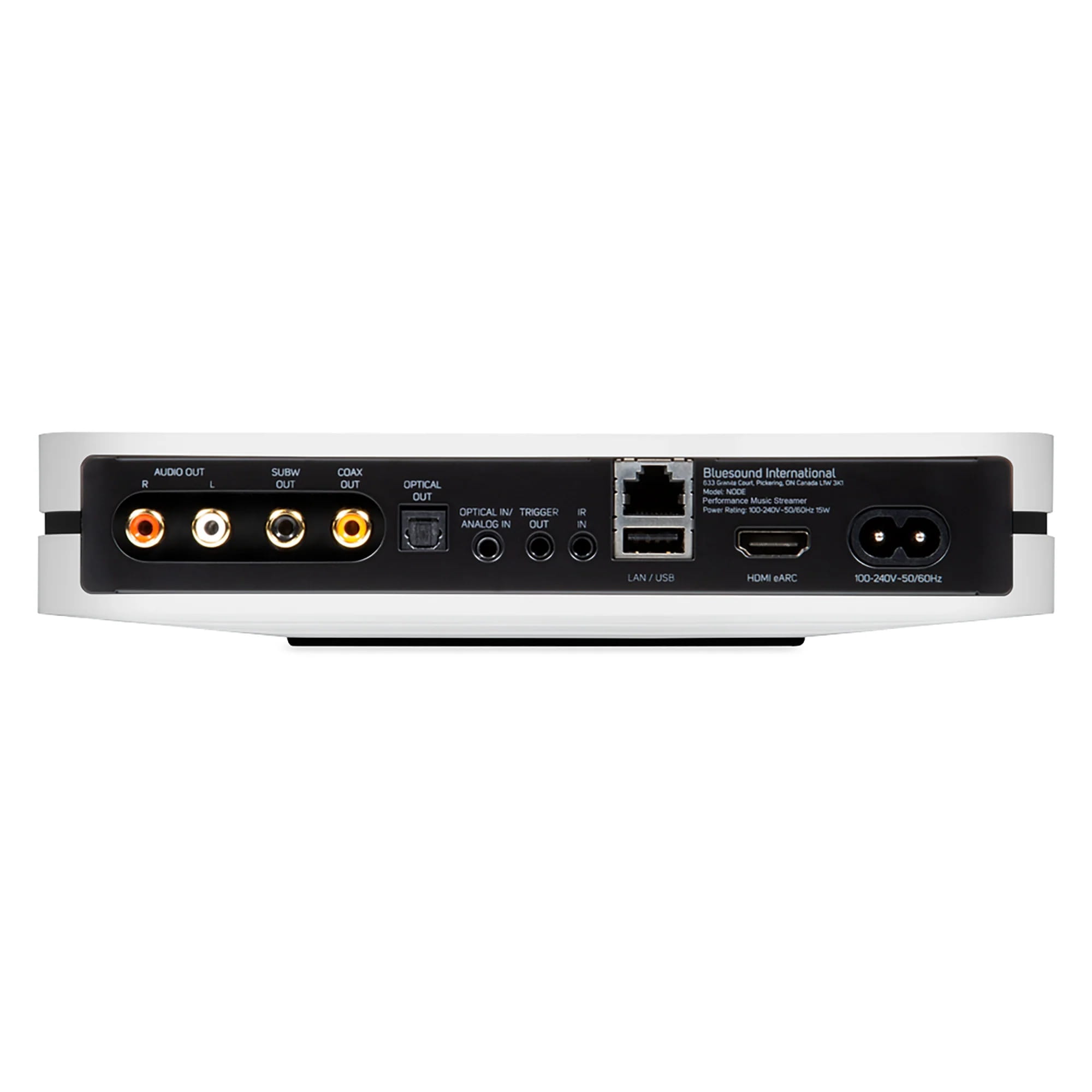

Connections

Power Supply	Universal bi-pin AC cord input (100-240AC)
Optical/Analog Input	Combo – Mini TOSLINK/Stereo 3.5mm
Coaxial Output	RCA
Ethernet/LAN	Ethernet RJ45, Gigabit 1000 Mbps
IR Input	3.5mm Jack
Optical Output	TOSLINK digital optical
Wi-Fi Built In	Wi-Fi 5 (802.11ac), dual-band
HDMI Input	HDMI eARC
Trigger Out	12 Volt
Bluetooth Quality	Bluetooth 5.2 aptX Adaptive
USB IN	Type A (Fat32 Formatted) – External Storage only; Local Server Mode
Headphone Output	6.3mm Stereo; Bluetooth
Bluetooth Connectivity	Two-Way (transmit & receive)
Audio Output	Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
Subwoofer Output	RCA x 1; Wireless to PULSE SUB+
IR Optical Built In	IR Sensor Built In – front panel with IR Remote Learning

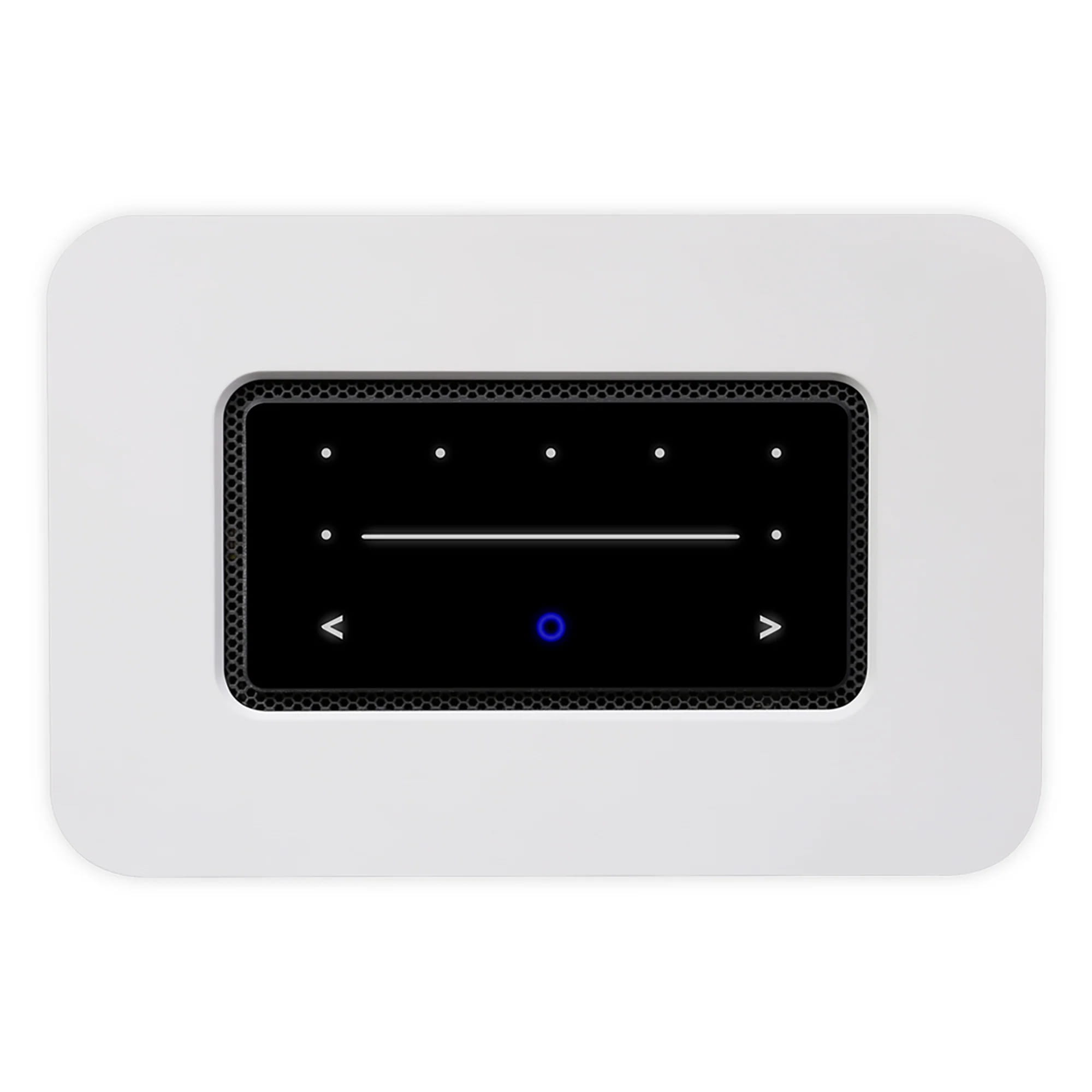

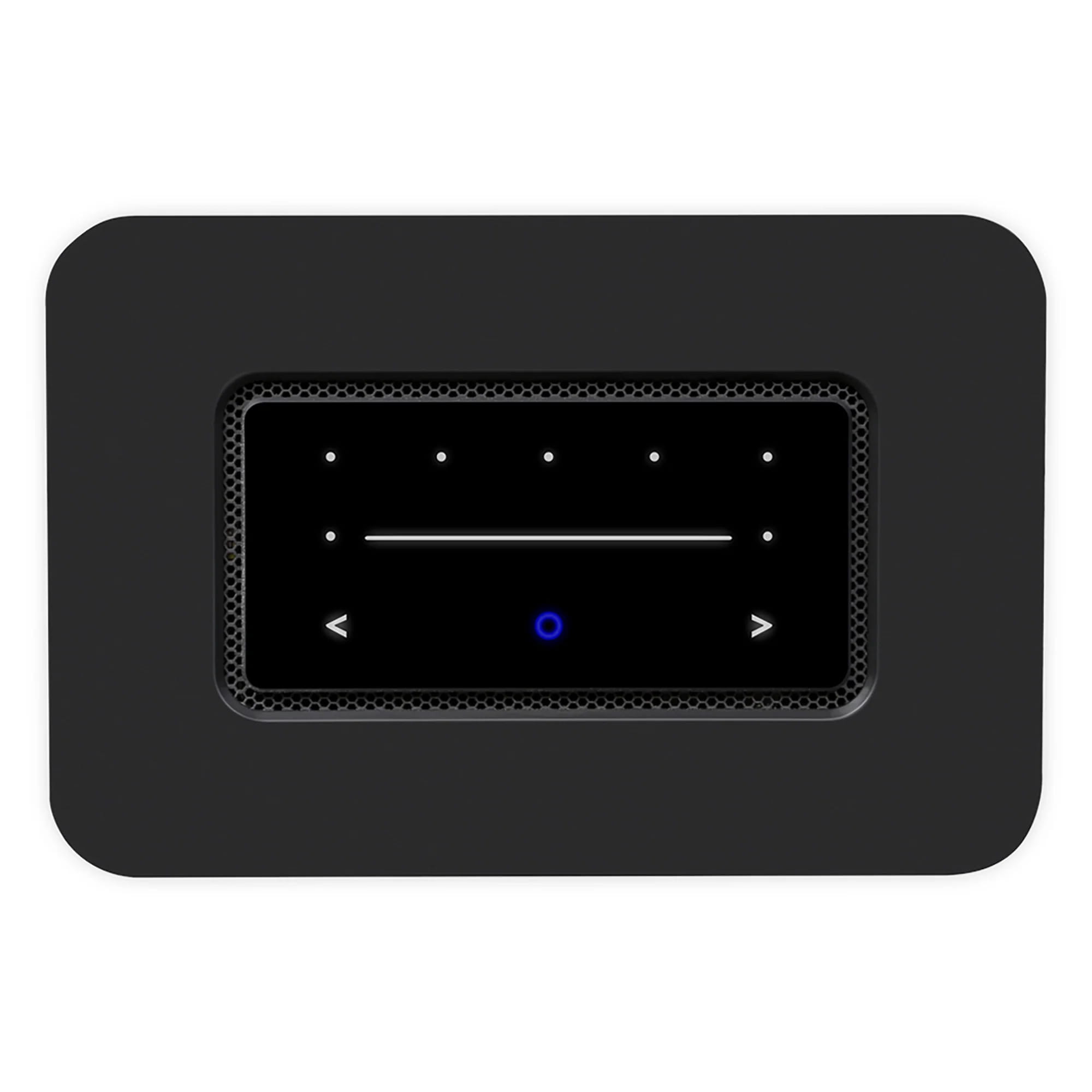

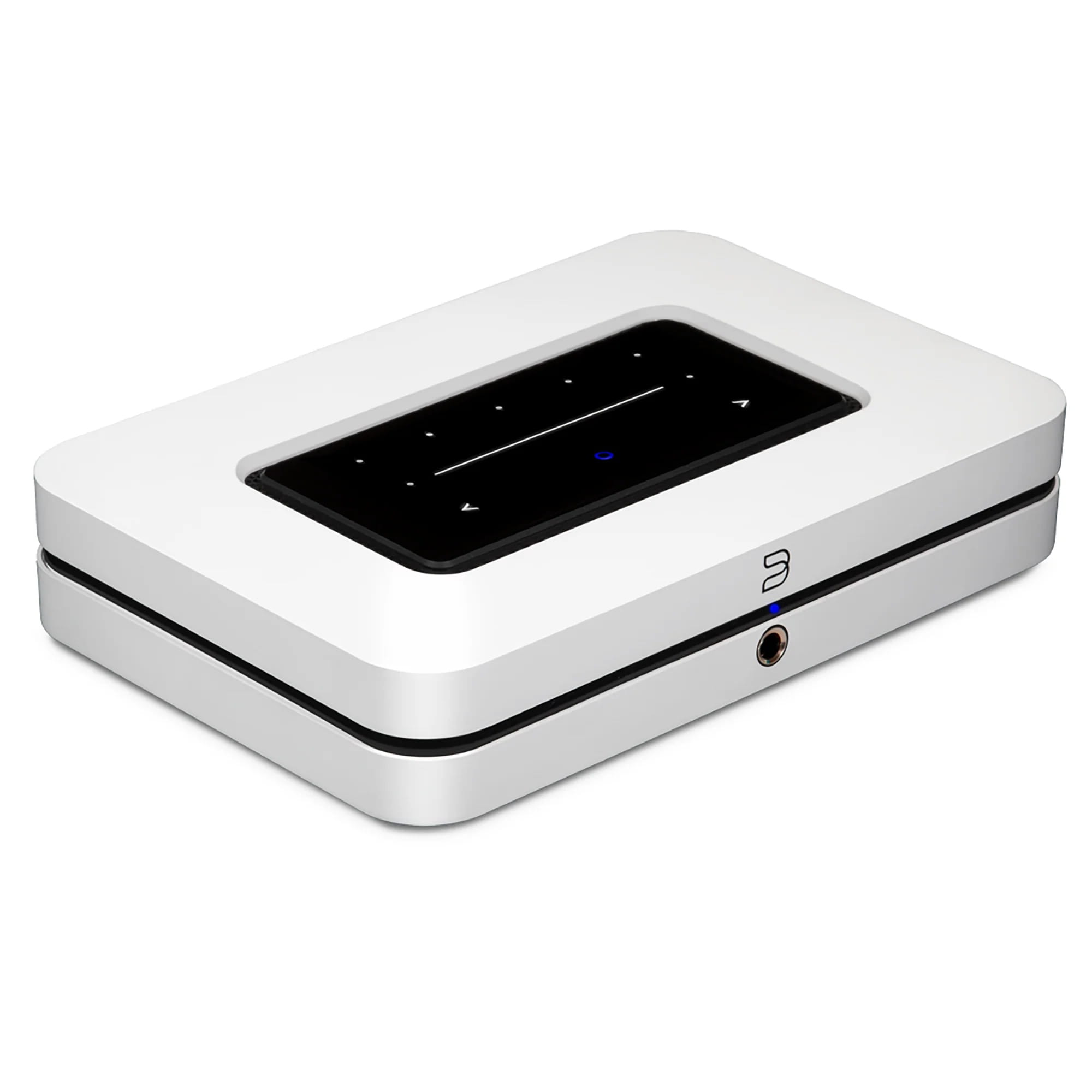

User Interface & Control

Status Indicator	LED x 2
Volume Control Buttons	Touch Slider LED
Proximity Sensor	Yes
Play/Pause Button	Touch LED
Preset Buttons	Touch LED x 5

General

Finish	Black or White: Matte Satin Paint
Product Dimensions	220 x 46 x 146 mm (W x H x D)8.7 x 1.8 x 5.7 in (W x H x D)**Non-metric measurements are approximate.
Included Accessories	• 120V AC Power Cord• 230V AC Power Cord• Stereo RCA to RCA Cable• Ethernet Cable• Mini Jack to Toslink Adapter• Safety/Warranty Guide• Quick Setup Guide• Dirac Live Ready Info Card
Storage Environment	-10°C to 50°C, 20% to 80% relative humidity
Product Weight	1.09kg/2.4lbs
Operating Environment	0°C to 40°C
Version	N132
