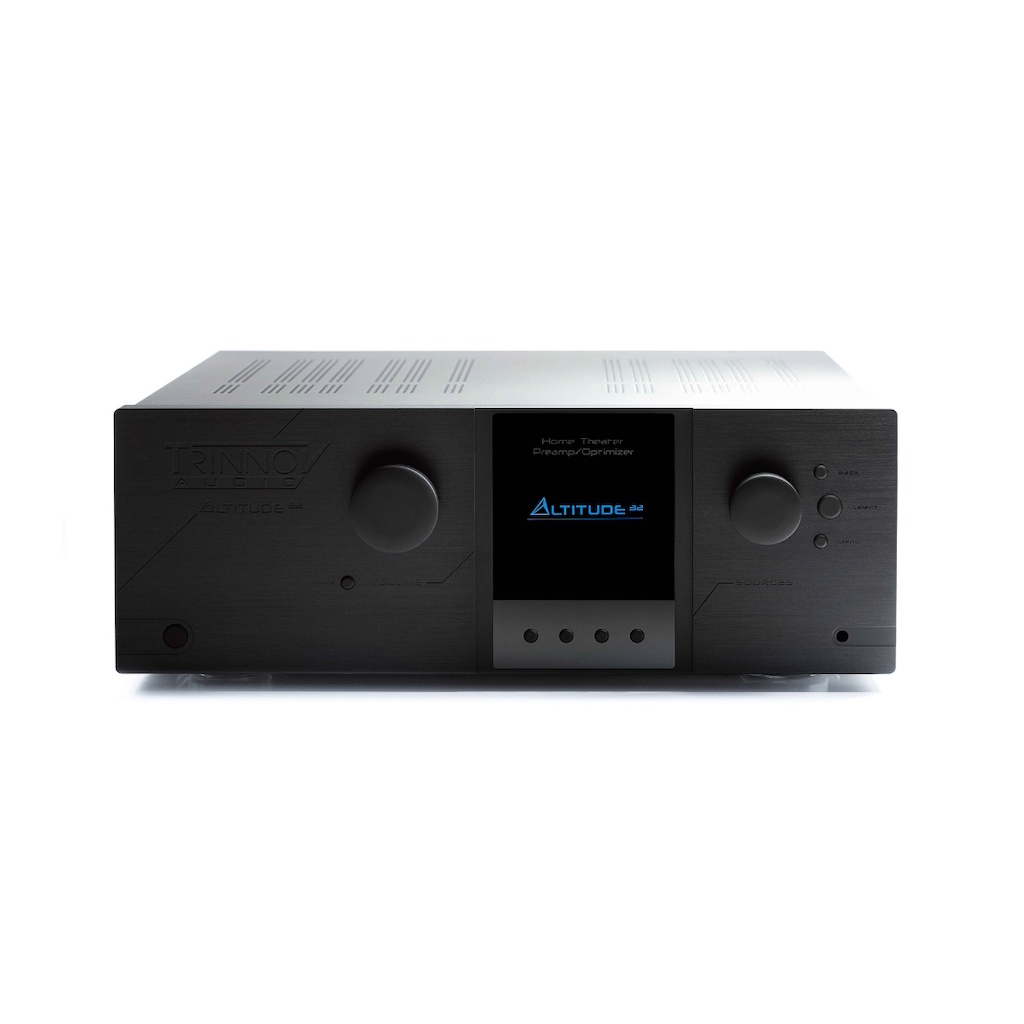

    • trinnov Altitude 32 Channel AV Processor New Front View, Available at Loud and Clear Glasgow, Scotland, U.K.

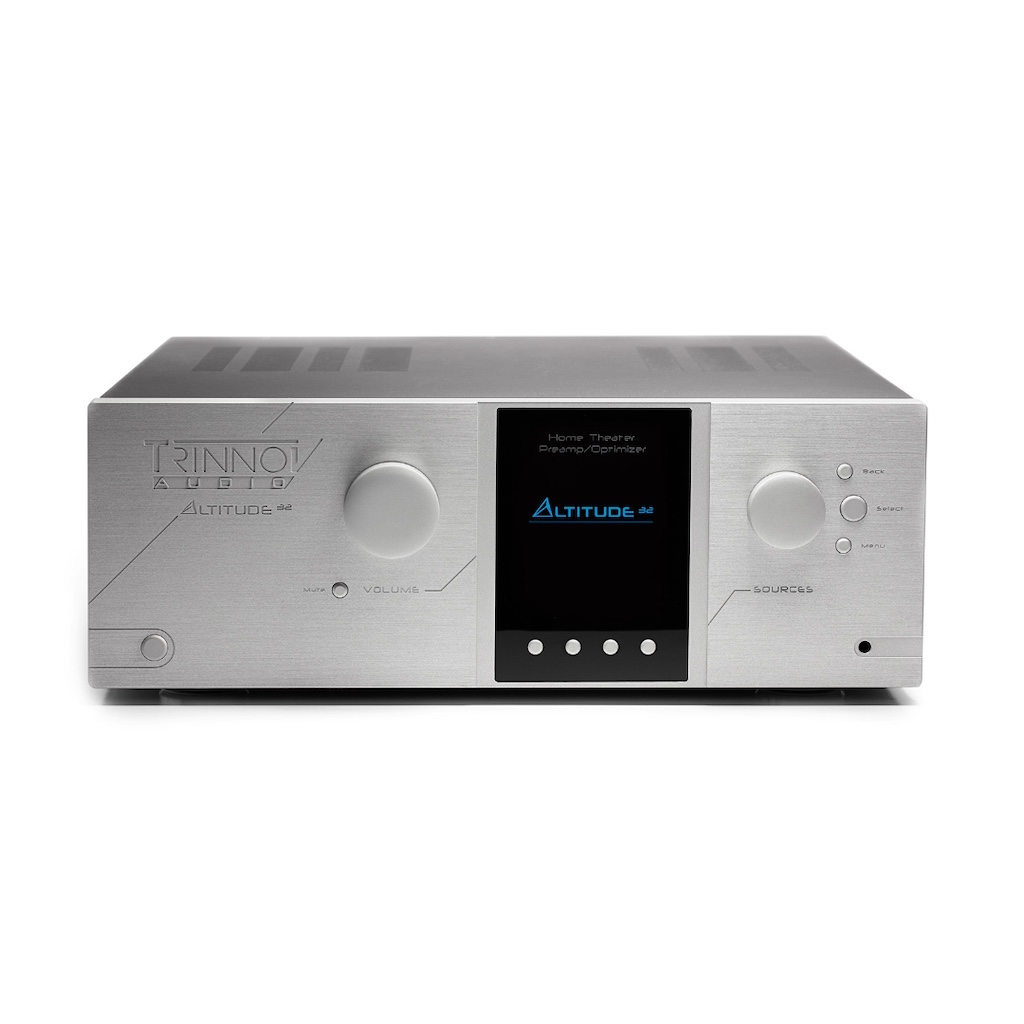

    trinnov Altitude 32 Channel AV Processor New Silver View, Available at Loud and Clear Glasgow, Scotland, U.K.

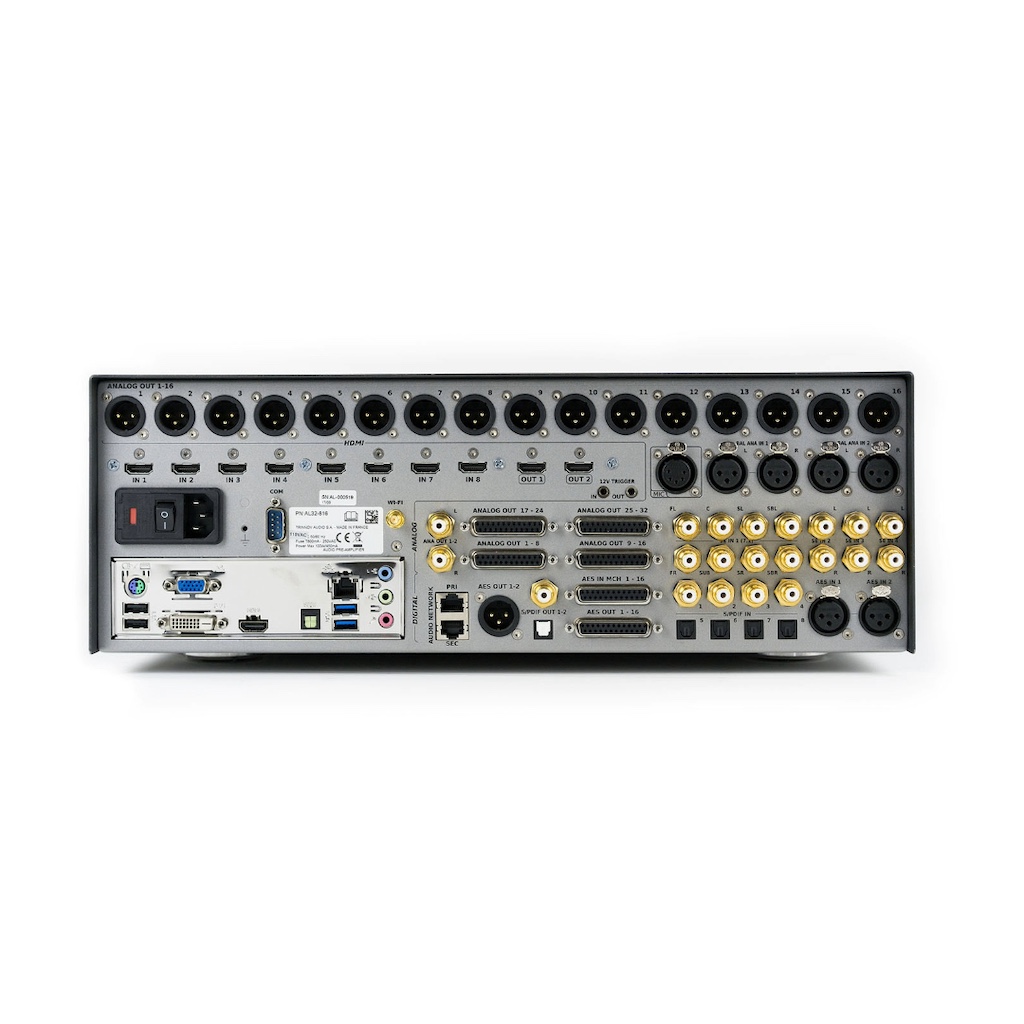

    trinnov Altitude 32 Channel AV Processor New Rear View, Available at Loud and Clear Glasgow, Scotland, U.K.

    Trinnov

    Altitude32 AV Processor

    £20,485 – £33,445

    The Trinnov Altitude32 is built from the ground up as a reference-grade processor, with uncompromising hardware and custom Linux-based architecture at its core. Capable of decoding and rendering up to 32 discrete channels in real time. Its proprietary 64-bit processing engine, state-of-the-art digital crossover management, and fully customisable EQ and bass management let you fine-tune every speaker in the room. With support for Dolby Atmos, DTS:X Pro, and Auro-3D—plus Trinnov’s own 3D Optimiser room correction—it delivers immersive sound with uncanny precision and spatial realism.

    → Read more

    SKU: N/A

    Trinnov Altitude32 AV Processor

    Trinnov Altitude32 AV Pre Amplifier, designed & Manufactured in France, has become the best solution for 3D luxury home theatres due to its state-of-art hardware platform that integrates the latest 3D audio technologies.

    3D Audio Decoders

    Trinnov is the only manufacturer that doesn’t rely on third-party DSPs in order to support the latest 3D audio formats. Software-oriented updates are provided over the internet so no DSP upgrade is required. Altitude32 supports any 3D speaker configuration regardless of formats and decodes up to 32 discrete channels in Dolby Atmos. It features an exclusive, easy-to-use 3D Speaker Configuration tool.

    Up to 32 Discrete Channels

    Hosting up to 32 discrete channels, this AV preamp is a revolutionary, PC-based hardware platform. It is a future-proof, fully upgradable and scalable audio processor. Trinnov high-performance AD/DA converters are used daily by the most demanding mastering studios. It boasts 64 bits floating point and 24 bits / 192 kHz native processing as well as Ethernet Audio Multi-Link output making it ready for networked audio.

    Trinnov’s technologies

    The only AV preamp to benefit from Trinnov’s technologies, Altitude32 features universal Spatial Accurate 3D Audio playback with patented 3D Loudspeaker Remapping, exclusive 3D measurement microphone and 3D Speaker/Room calibration tools, optimised frequency and phase response for all speakers and subwoofers, advanced bass management for 0 to 32 subwoofers and automatic calibration of 2-way, 3-way or 4-way active crossovers.

    Easy Integration

    This unit features a user-friendly web-based interface from any wireless device whether you are using a tablet, laptop or desktop computer. It incorporates built-in Gigabit Ethernet and WiFi, automation via Telnet (Ethernet) or RS232 protocols as well as AMX, Control4, Crestron, RTI and Savant modules. An infrared remote control is included.

    The Optimiser

    The Optimiser loudspeaker/room optimisation technology is at the heart of Trinnov’s products for professional studios, movie theatres, high-end Hi-Fi and home theatres. With its modern approach to acoustic measurements, analysis, and processing, it solves the Loudspeaker/Room acoustic equation. Trinnov derives its name from its concept of “Innovation in 3D Audio”.

    One of the first things they discovered is that complex 3D sound fields do not blend together seamlessly unless the sound heard from all of the speakers is extremely well-matched in both the amplitude and time domains. The Optimiser was developed to achieve this goal with any combination of quality loudspeakers and has become recognized as the most advanced and powerful technology of its kind.

    Roon Ready

    Roon is a music server system designed to reconnect you with music. It collects your music from all your computers, NAS drives and even streaming services like TIDAL, bringing them together in an interface that invites musical exploration. With biographies, high-resolution photos, lyrics, reviews, credits and concert dates, Roon allows users to discover the connections between the artists, composers, performers, producers and composers who created the music they love most and helping them to discover new music.

    Audio Specs

    – ADC Resolution / Sampling Rate: 24 bits/96 kHz
    – DAC Resolution / Sampling Rate: 24 bits/192 kHz
    – A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
    – D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
    – Analog Input Impedance: 20 kΩ / Single End: 10 kΩ
    – Reference Level: +18dBu @ 0dBFS (Balanced)
    – Clock / Jitter:Jitter attenuation > 50 dB above 100Hz)
    – Power Supply: Independent for audio and processing sections
    – Saftey Components: AntiPop relays on each analog output

    `

    Specifications

    Object Based Decoding (All Versions)

    • Dolby Atmos® Native Decoding & Up-mix:Up to 34 discrete channels
    • Auro-3D® Native Decoding & Up-mix (Auromatic):Up to 13.1
    • DTS:X® Pro Native Decoding & Up-Mix:Up to 30.2
    • Speaker Layouts support:All
    • IMAX Enhanced:Yes



    Channel Based Audio Decoding

    • Dolby:Digital®, Digital Plus®, TrueHD®
    • DTS:Digital Surround®, High Res Audio®, HD Master Audio®
    • PCM:Up to 24 bits / 192 kHz
    • Roon:YES



    Channel Capabilities

    • Max Channels:x12 (8-8), x20 (8-16), x28 (16-24), x36 (24-32)
    • Max Optimizer Channels:x12 (8-8), x20 (8-16), x28 (16-24), x36 (24-32)
    • Max Subwoofers:x12 (8-8), x20 (8-16), x28 (16-24), x36 (24-32)
    • Max Crossovers (2/3/4 way):6/4/3 (8-8), 10/6/5 (8-16)
    • Max Crossovers (2/3/4 way):14/9/7 (16-24), 18/12/9 (16-32)
    • Full Input / Output Matrix (all versions):Yes
    • Configuration presets (all versions):29



    HDMI Connectivity

    • Output 1:HDMI 2.1 / HDCP 2.3
    • Output 2:HDMI 2.1 / HDCP 2.3
    • Inputs:8
    • Maximum resolution:4K 120Hz/8K 60Hz
    • Maximum bandwidth:40Gbps on all inputs and outputs
    • Frame rates supported:4K 24/25/30/48/60/100/120, 8K 24/25/30/48/60
    • ARC / eARC:Available on Output 1
    • OSD:Main information displayed on-screen
    • HDR Support:HDR10, HDR10+, HLG and Dolby Vision



    Digital Audio Connectivity

    • S/PDIF Inputs:x4 (2 optical, 2 coaxial)

    • S/PDIF Outputs:x2 (1 optical, 1 coaxial)
    • AES3 Inputs (XLR):x2
    • AES3 Outputs (XLR):x1
    • AES3 Outputs (DB25) – 8-8 & 8-16:x8 upgradeable to 16
    • AES3 Outputs (DB25) – 16-24 & 24-32:x16
    • AES3 Input Compliance:DCI
    • Audio Network:Dual ports (for future use)



    Analogue Audio Connectivity

    • Microphone input:1x 5 Pin XLR for 3D Microphone
    • Balanced inputs:2x Stereo XLR
    • Unbalanced inputs:3x Stereo RCA, 1x 7.1 RCA
    • Balanced outputs:x8 (8-8), x16 all other models
    • Unbalanced outputs:1x stereo RCA
    • DB25 Analogue outputs:



    Audio Processing

    • Data precision:64 bits, floating point
    • Max Sampling Rate (up to 24 channels):Native, up to 192kHz
    • Max Sampling Rate (up to 32 channel with +4 option):Native, up to 96kHz
    • Max Sampling Rate (above 24 channels):Native, up to 96kHz
    • Max Sampling Rate (above 32 channels):Native, up to 48kHz



    Hardware

    • Processor:Intel multi core hyper threaded
    • ADC Resolution / Sampling Rate:24 bits/96 kHz
    • DAC Resolution / Sampling Rate:24 bits/192 kHz
    • A/D Signal-To-Noise Ratio:119 dB (A-Weighted)
    • D/A Signal-To-Noise Ratio:118 dB (A-Weighted)
    • Reference Level:+18dBu @ 0dBFS (Balanced)
    • Clock / Jitter:attenuation > 50 dB above 100Hz
    • Cooling system:Custom heat sinks & silent fans
    • Safety Components:AntiPop relays on each output



    Power Supply

    • Power requirement:240V / 110V – 50 / 60Hz (Manual Switch)
    • Power consumption:132W Max
    • Thermal conversion:450 BTU/h Max
    • Mains fuse:2A Slow Blow
    • Internal PSUs:Separated supplies for Audio and Processing



    Weight & Dimensions

    • Dimensions (W x H x D) mm:442 x 165 x 445
    • Dimensions (W x H x D) inches:17 7/16″ x 6 1/2″ x 17 9/16″
    • Shippind dimensions (L x H x P) cm:74 x 59 x 30
    • Weight:14.5kg / 32 lbs
    • Shipping weight / volume:22.2kg / 0.131M3
    • Rackmounting:3.5U – Rack Ears Included



    Warranty

    • Standard Warranty:5 year
    • Transferable:Yes
    • Warranty Extension Program:Yes



    Chassis

    • Standard Color:Black
    • Optional Color:Silver
